🎲 Resampling Strategies

As future data scientists, you are probably well aware of the challenges involved in data collection — time, cost, and the complexities of experimental design often make large datasets hard to come by. However, robust predictive modeling is critical not only because extensive datasets can be rare, but also because ensuring that models generalize well to new data is often an essential question.

Resampling methods offer a powerful approach to assess model performance and mitigate overfitting. Rather than relying on a single train-test split, which can yield performance estimates that vary significantly depending on the split, resampling techniques repeatedly draw samples from your data. This process simulates multiple independent training and test sets, providing a more stable and reliable evaluation of your model.

The data¶

We will use the famous Iris dataset, which contains 150 samples from three species of the iris plant (iris setosa, iris virginica and iris versicolor). The data contains four features: the length and the width of the sepals and petals (in centimeters).

import seaborn as sns
import pandas as pd
from sklearn import datasets

# Get data
iris = datasets.load_iris(as_frame=True)
df = iris.frame
df['class'] = pd.Categorical.from_codes(iris.target, iris.target_names)

df.describe()

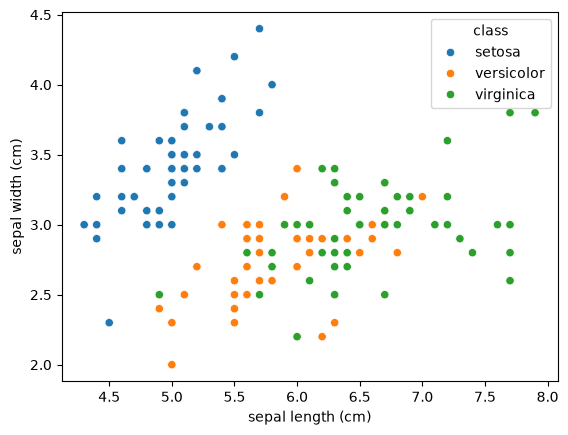

sns.scatterplot(data=df, x='sepal length (cm)', y='sepal width (cm)', hue="class");

The goal of our model is to classify the flowering plants based on the two features shown in the plot (sepal length and width). Which of the following is true about the model and task at hand?

from jupyterquiz import display_quiz
display_quiz('quiz/iris.json')

Validation Sets¶

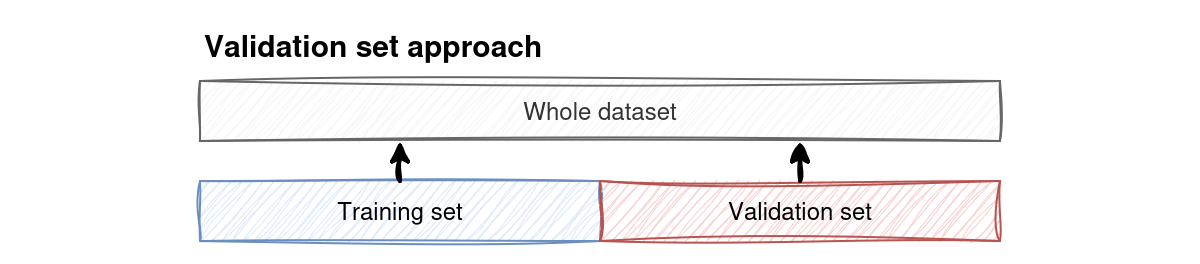

The simplest form of cross validation is to simply split the dataset into two parts:

• Training set: Part of the data used for training

• Validation set: Part of the data used for testing (e.g. across different models and hyperparameters)

The training and testing set neither need to be of equal size nor do they need to be contiguous blocks in the data. Let’s try the validation set approach on the Iris data:

1. Define features and target data

iris = datasets.load_iris(as_frame=True)

# Features: sepal length and width; target: type of flower
X = df[["sepal length (cm)", "sepal width (cm)"]]
y = df["target"]

2. Split the data into training and test samples

from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.4, random_state=42)

3. Fit the model (we use a support vector classifier which you will learn about later in the seminar)

from sklearn import svm

model = svm.SVC(kernel='linear')
fit = model.fit(X_train, y_train)

4. Evaluate model performance

fit.score(X_test, y_test)

The score() method returns the accuray of our predictions. In this case, our algorithm correctly predicted the species of the flower in 85% of cases.

from jupytercards import display_flashcards
display_flashcards('quiz/validation_set.json');

Try it yourself: the split ratio matters too. Before running the cell below, think about what you expect: is it better to train on 80% of the data and test on 20%, or the other way round?

for test_size in [0.2, 0.5, 0.8]:
    X_tr, X_te, y_tr, y_te = train_test_split(X, y, test_size=test_size, random_state=42)
    acc = svm.SVC(kernel='linear').fit(X_tr, y_tr).score(X_te, y_te)
    print(f"train on {1 - test_size:.0%} / test on {test_size:.0%}"
          f"   ->   {len(X_tr):>3} training samples, accuracy = {acc:.3f}")

train on 80% / test on 20%   ->   120 training samples, accuracy = 0.900
train on 50% / test on 50%   ->    75 training samples, accuracy = 0.760
train on 20% / test on 80%   ->    30 training samples, accuracy = 0.775

Training on more data generally gives a better model, but it also leaves fewer test samples, so the accuracy estimate itself becomes noisier. That is the tradeoff the validation set approach cannot escape.

Cross Validation (CV)¶

K-fold CV¶

To get more robust performance estimates, we need something smarter. Rather than worrying about if the split of data used for training and validation is biased, we will perform this splitting multiple times and use all of the splits in turn.

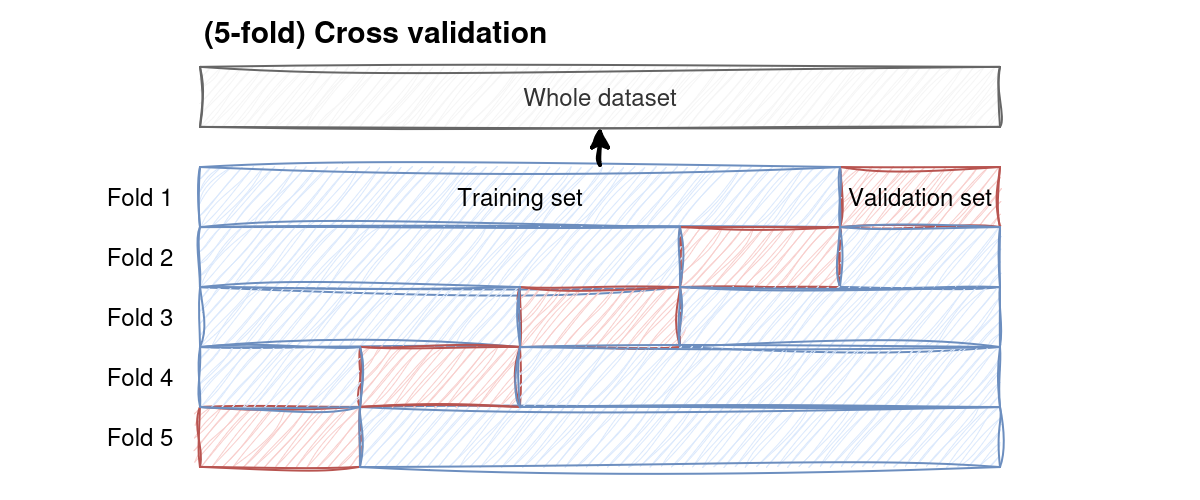

In k-fold CV we randomly divide the dataset into $k$ equally sized folds. In each round, one fold is designated as the validation set, while the remaining $k-1$ folds form the training set. The fitting process is repeated $k$ times, each time using a different fold as the validation set. At the end of the process, we can compute the average accuracy across all validation folds to obtain a more reliable estimate of the model’s overall performance.

Let`s try it on our data:

import numpy as np
from sklearn.model_selection import KFold, cross_val_score

k_fold = KFold(n_splits=5, shuffle=True, random_state=42)
model = svm.SVC(kernel='linear')

scores = cross_val_score(model, X, y, cv=k_fold)

print(f"Average accuracy:    {scores.mean()}")
print(f"Individual accuracies: {scores}")

Average accuracy:    0.8066666666666669
Individual accuracies: [0.9        0.76666667 0.76666667 0.83333333 0.76666667]

If we are interested in the exact models, we can also run the training and evaluation explicitly which allows us to save the models:

from sklearn.base import clone

base_model = svm.SVC(kernel='linear')
score_list = []
model_list =  []

for train_index, test_index in k_fold.split(X):
    X_train, X_test = X.iloc[train_index], X.iloc[test_index] # iloc because X is a df
    y_train, y_test = y.iloc[train_index], y.iloc[test_index] # iloc because y is a df

    model = clone(base_model) # create a new copy of the model for every iteration
    model.fit(X_train, y_train)
    score = model.score(X_test, y_test)

    score_list.append(score)
    model_list.append(model)

print(f"Best performing model in split {score_list.index(max(score_list))}.")
print(f"Accuracy: {max(score_list)}")

Best performing model in split 0.
Accuracy: 0.9

Try it and watch what happens:

scores_unshuffled = cross_val_score(model, X, y, cv=KFold(n_splits=5))
print(f"Without shuffling: {np.round(scores_unshuffled, 3)} -> mean {scores_unshuffled.mean():.3f}")

Without shuffling: [1.    0.8   0.3   0.767 0.2  ] -> mean 0.613

That 0.61 is not a property of the model, it is an artefact of the row ordering. Whenever your data has structure in its row order (sorted by group, collected by session, ordered in time), shuffling or a stratified splitter matters more than the choice of $k$.

For classification it is usually even better to use StratifiedKFold, which additionally keeps the class proportions constant in every fold. Passing a plain integer to cross_val_score does this for you automatically:

scores_stratified = cross_val_score(svm.SVC(kernel='linear'), X, y, cv=5)
print(f"Average accuracy: {scores_stratified.mean():.3f}")

Average accuracy: 0.807

Try it yourself: change the number of folds $k$ below and watch what happens. We have 150 observations, so $k$ can range from 2 to 150.

for k in [2, 5, 10, 20, 50]:
    cv = KFold(n_splits=k, shuffle=True, random_state=42)
    sc = cross_val_score(svm.SVC(kernel='linear'), X, y, cv=cv)
    print(f"k = {k:>2}   mean accuracy = {sc.mean():.3f}   "
          f"std across folds = {sc.std():.3f}   ({k} model fits)")

k =  2   mean accuracy = 0.760   std across folds = 0.000   (2 model fits)

k =  5   mean accuracy = 0.807   std across folds = 0.053   (5 model fits)
k = 10   mean accuracy = 0.787   std across folds = 0.111   (10 model fits)

k = 20   mean accuracy = 0.806   std across folds = 0.122   (20 model fits)

k = 50   mean accuracy = 0.813   std across folds = 0.242   (50 model fits)

Notice that the mean barely moves once $k \ge 5$, while the standard deviation across folds keeps growing: with more folds each test set is smaller, so each individual fold score is noisier even though their average is stable. The extra compute buys very little beyond $k = 5$ or 10.

Leave-one-out CV (LOOCV)¶

LOOCV is a special case of k-fold cross validation, where $k$ equals the number of observations. In LOOCV, the model is trained on all but one data point, and the remaining single observation is used for validation. This process repeats for each data point, ensuring every observation is used for testing exactly once.

While LOOCV provides a low-bias estimate, it is computationally expensive and may lead to high variance in model performance. The implementation is fairly similar, we just need to change the CV from KFold() to LeaveOneOut():

from sklearn.model_selection import LeaveOneOut

model = svm.SVC(kernel='linear')
loocv = LeaveOneOut()

scores = cross_val_score(model, X, y, cv = loocv)

print(f"Average accuracy:    {scores.mean()}")
print(f"Indidual accuracies: {scores}")

Average accuracy:    0.8
Indidual accuracies: [1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1.
 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 0. 1. 1. 1. 1. 1. 1.
 1. 1. 0. 0. 0. 1. 0. 1. 0. 1. 0. 1. 1. 1. 1. 1. 1. 0. 1. 1. 1. 1. 1. 1.
 1. 1. 0. 0. 0. 0. 1. 1. 1. 1. 1. 1. 1. 1. 0. 1. 1. 1. 1. 1. 1. 1. 1. 1.
 1. 1. 1. 1. 1. 0. 1. 0. 1. 1. 0. 1. 1. 1. 1. 0. 1. 0. 0. 1. 1. 1. 1. 0.
 1. 0. 1. 0. 1. 1. 0. 0. 1. 1. 1. 1. 1. 0. 0. 1. 1. 1. 0. 1. 1. 1. 0. 1.
 1. 1. 0. 1. 1. 0.]

Bootstrapping¶

Bootstrapping is a resampling method that helps us estimate how much a model’s results might vary if we collected a different dataset. The idea is simple: instead of having just one training set, we create many “new” datasets by sampling with replacement from the original data.

Each bootstrap sample is the same size as the original dataset, but because sampling is done with replacement, some observations will appear more than once, while others might not appear at all.

For each bootstrap iteration:

1. A new sample (the bootstrap sample) is drawn from the data.

2. The model is trained on this bootstrap sample.

3. The observations that were not included in that sample (the out-of-bag (OOB) samples) are used to test the model.

Repeating this process many times gives multiple estimates of model performance. The variability among these estimates provides insight into the model’s uncertainty and stability. In contrast, cross-validation divides the data into fixed folds and does not resample with replacement. Cross-validation is generally better for estimating predictive accuracy, while bootstrapping is often used to assess the uncertainty of model parameters or performance estimates.

We here outline the concept with 10 iterations:

import numpy as np
import pandas as pd
from sklearn import datasets, svm
from sklearn.utils import resample

# Load the data
iris = datasets.load_iris(as_frame=True)
df = iris.frame

n_iterations = 10
scores = []

for i in range(n_iterations):
    # Create a bootstrap sample
    bootstrap_sample = resample(df, replace=True, n_samples=len(df), random_state=i)

    # Determine the out-of-bag (OOB) samples: rows not in the bootstrap sample.
    oob_indices = df.index.difference(bootstrap_sample.index)

    # If no OOB samples are available, skip this iteration.
    if len(oob_indices) == 0:
        print(f"Iteration {i+1}: No out-of-bag samples, skipping iteration.")
        continue

    oob_sample = df.loc[oob_indices]

    # Define features and target for training and testing
    X_train = bootstrap_sample[["sepal length (cm)", "sepal width (cm)"]]
    y_train = bootstrap_sample["target"]
    X_test = oob_sample[["sepal length (cm)", "sepal width (cm)"]]
    y_test = oob_sample["target"]

    # Train and evaluate the model
    model = svm.SVC(kernel='linear')
    model.fit(X_train, y_train)

    score = model.score(X_test, y_test)
    scores.append(score)
    print(f"Iteration {i+1}: Accuracy = {score:.3f}")

print("\nMean Accuracy:", np.mean(scores))

Iteration 1: Accuracy = 0.774
Iteration 2: Accuracy = 0.825
Iteration 3: Accuracy = 0.759
Iteration 4: Accuracy = 0.817
Iteration 5: Accuracy = 0.818
Iteration 6: Accuracy = 0.778
Iteration 7: Accuracy = 0.827
Iteration 8: Accuracy = 0.729
Iteration 9: Accuracy = 0.807
Iteration 10: Accuracy = 0.839

Mean Accuracy: 0.7971433155841059

Because the same observations are reused across many bootstrap iterations (serving as training data in some and test data in others), the resulting performance estimates are correlated and can behave differently from cross-validation estimates.
