➗ LDA & QDA - Statistical Learning with Python

We have previously introduced logistic regression as a classification algorithm. It belongs to a class of models referred to as discriminative models. This means they try to establish a decision boundary (discriminator), which best separates the classes.

In contrast, generative models such as Linear Discriminant Analysis (LDA) and Quadratic Discriminant Analysis (QDA) (and also Naïve Bayes, which will be introduced in the next session) see the world with different eyes! They are focused on learning the underlying distribution of the data and its labels.

Linear Discriminant Analysis (LDA)¶

LDA assumes that:

The features are distributed according to a multivariate Gaussian distribution
Classes share the same covariance matrix

As a visual intuition in a 2D case (2 predictors), this means the class distributions look like ellipses with the same shape and orientation (but centred at different locations if there is a difference between the classes). In detail, LDA requires 4 steps to make a decision:

Step 1: Model the distribution of the predictors $X$ separately for each response class $Y$
Step 2: Use Bayes’ theorem to calculate estimates for the posterior probability
Step 3: Derive the discriminant function for each class
Step 4: Apply a decision rule to classify the observation

Step 1: Estimate Class Distributions

We assume that each class $k$ generates its data points from a multivariate normal distribution:

P(X | Y = k) = \frac{1}{(2\pi)^{p/2} |\Sigma|^{1/2}} \exp\left(-\frac{1}{2} (X - \mu_k)^T \Sigma^{-1} (X - \mu_k)\right)

(1)

where:

$X$ is the feature vector
$p$ is the number of features
$\mu_k$ is the mean vector of class $k$
$\Sigma$ is the pooled covariance matrix over all classes

In practice, we do not know $\mu_k$ and $\Sigma$ , so we estimate them from the training data.

💡 Key Assumption: LDA assumes that all classes share the same covariance matrix $\Sigma$ . This makes the decision boundaries linear.

Step 2: Apply Bayes’ Theorem

We want to know the posterior probability. This is the probability of a class $k$ given a new observation $X$ :

P(Y = k | X) = \frac{P(X | Y = k) P(Y = k)}{P(X)}

(2)

where:

$P(X | Y = k)$ is the likelihood (the Gaussian density from Step 1)
$P(Y = k)$ is the prior probability of class $k$
$P(X)$ is the evidence (the overall probability of observing $X$ )

The prior $P(Y = k)$ is typically estimated as the relative frequency of class $k$ in the training data, unless we want to impose different priors.

💡 We model how each class generates the data, and then use Bayes’ theorem to “flip” this around and find the most likely class for a new point.

When performing classification, we only need to compare which posterior probability is largest. Taking the logarithm preserves the order of the probabilities while simplifying multiplication into addition. Further, the evidence $P(X)$ is the same across all classes (because it is the sum over all classes) and therefore does not affect the relative ranking. This allows us to drop it and work with proportionality ( $\propto$ ):

\log P(Y = k | X) \propto \log P(X | Y = k) + \log P(Y = k)

(3)

Step 3: Derive the Discriminant Function

We can then perform some linear algebra (substitute the multivariate Gaussian density into the log expression, expand the quadratic form, and remove terms independent of the class $k$ ; see James et al. (ISLR) Chapter 4.4 if you are interested in the details). This will then result in the discriminant function $\delta_k(X)$ :

\delta_k(X) = X^T \Sigma^{-1} \mu_k - \frac{1}{2} \mu_k^T \Sigma^{-1} \mu_k + \log(\pi_k)

(4)

where:

$X^T \Sigma^{-1} \mu_k$ is the projection of the data onto the mean direction
$-\frac{1}{2} \mu_k^T \Sigma^{-1} \mu_k$ adjusts for the distribution’s spread
$\log(\pi_k)$ adjusts for how common the class is (prior probability)

Note that $\delta_k(X)$ is linear in $X$ (no squared terms), which is why LDA produces linear decision boundaries.

Step 4: Decision Rule

The final decision is made by comparing the discriminant functions, and we classify the new observation into the class with the highest discriminant value:

\hat{Y} = \arg \max_k \delta_k(X)

(5)

Connection to Logistic Regression¶

Logistic regression directly models $P(Y∣X)$ (discriminative). LDA instead models $P(X∣Y)$ and $P(Y)$ , then uses Bayes’ theorem to obtain $P(Y∣X)$ (generative). In a simple two-class case with some assumptions (e.g. equal covariance, equal priors), LDA and logistic regression can even yield very similar decision boundaries, although they arrive there from different modelling perspectives.

Quadratic Discriminant Analysis (QDA)¶

QDA is a more flexible version of LDA. It:

Also assumes Gaussian distributions for each class.
Allows each class to have its own covariance matrix, resulting in quadratic decision boundaries.

The discriminant function for QDA is:

\delta_k(X) = -\frac{1}{2} (X - \mu_k)^T \Sigma_k^{-1} (X - \mu_k) - \frac{1}{2} \log |\Sigma_k| + \log(\pi_k)

(6)

where:

$\Sigma_k$ is the covariance matrix specific to class $k$
The determinant term $|\Sigma_k|$ is present because the spread varies between classes

Here, the term $-\frac{1}{2} (X - \mu_k)^T \Sigma_k^{-1} (X - \mu_k)$ remains in quadratic form and depends on $k$ , which leads to quadratic decision boundaries.

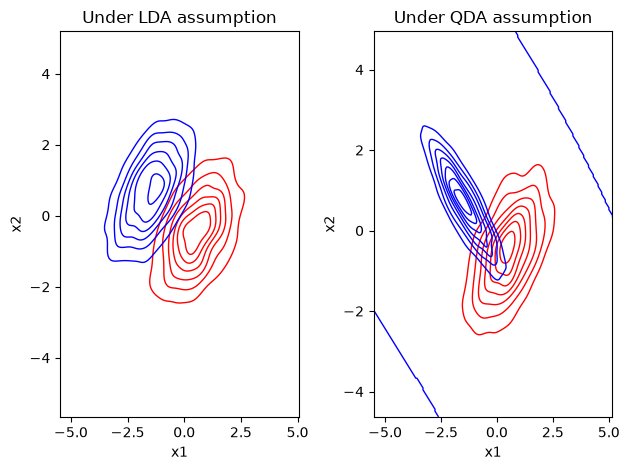

The difference in variance assumptions:

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import gaussian_kde
from matplotlib import gridspec

np.random.seed(3)

# Generate Bivariate Normal Data
def bivariate_norm(m1, m2, sigma1, sigma2, n1, n2):
    d1 = np.random.multivariate_normal(m1, sigma1, n1)
    d2 = np.random.multivariate_normal(m2, sigma2, n2)

    X = np.vstack([d1, d2])
    groups = np.array(["1"] * n1 + ["2"] * n2)

    return X, groups

# Parameters
m_1 = np.array([0.5, -0.5])
m_2 = np.array([-1.5, 0.7])
sigma_1 = np.array([[1, 0.5],
                    [0.5, 1]])
sigma_2 = np.array([[0.8, -0.7],
                    [-0.7, 0.8]])

# Generate datasets
X_lda, g_lda = bivariate_norm(m_1, m_2, sigma_1, sigma_1, 2000, 2000)
X_qda, g_qda = bivariate_norm(m_1, m_2, sigma_1, sigma_2, 2000, 2000)

# Helper: Contour Plot Function
def density_contour(ax, X, groups, title):
    colors = {"1": "red", "2": "blue"}

    for group in ["1", "2"]:
        pts = X[groups == group].T
        kde = gaussian_kde(pts)

        # Grid for evaluation
        xmin, ymin = X.min(axis=0) - 1
        xmax, ymax = X.max(axis=0) + 1
        xx, yy = np.mgrid[xmin:xmax:200j, ymin:ymax:200j]
        grid = np.vstack([xx.ravel(), yy.ravel()])

        zz = kde(grid).reshape(xx.shape)
        ax.contour(xx, yy, zz, colors=colors[group], linewidths=1)

    ax.set_title(title)
    ax.set_xlabel("x1")
    ax.set_ylabel("x2")

# Plot
fig, ax = plt.subplots(1,2)
density_contour(ax[0], X_lda, g_lda, "Under LDA assumption")
density_contour(ax[1], X_qda, g_qda, "Under QDA assumption")
plt.tight_layout();

LDA and QDA in Python¶

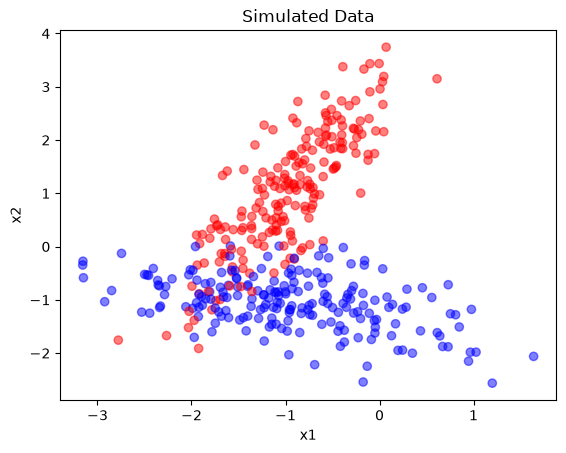

LDA and QDA can be implemented in Python using sklearn. In this example, we use artificial data for classification (2 features, 2 classes):

import matplotlib.pyplot as plt
from sklearn.datasets import make_classification

# Generate synthetic data
X, y = make_classification(n_samples=400, n_features=2, n_informative=2,
                           n_redundant=0, n_classes=2, n_clusters_per_class=1,
                           random_state=5)

fig, ax = plt.subplots()
ax.scatter(X[:, 0], X[:, 1], c=y, cmap='bwr', alpha=0.5)
ax.set(title="Simulated Data", xlabel="x1", ylabel="x2");

Fitting the model is straightforward. However, please have a look at the documentation for additional options such as the specific solver.

from sklearn.model_selection import train_test_split
from sklearn.discriminant_analysis import LinearDiscriminantAnalysis as LDA, \
                                          QuadraticDiscriminantAnalysis as QDA


X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)

lda = LDA()
lda.fit(X_train, y_train)

qda = QDA()
qda.fit(X_train, y_train);

We can then print the classification report:

from sklearn.metrics import classification_report

# Print classification report
print('LDA Classification Report:')
print(classification_report(y_test, lda.predict(X_test)))

print('QDA Classification Report:')
print(classification_report(y_test, qda.predict(X_test)))

LDA Classification Report:
              precision    recall  f1-score   support

           0       0.85      0.93      0.89        61
           1       0.92      0.83      0.88        59

    accuracy                           0.88       120
   macro avg       0.89      0.88      0.88       120
weighted avg       0.89      0.88      0.88       120

QDA Classification Report:
              precision    recall  f1-score   support

           0       0.91      0.95      0.93        61
           1       0.95      0.90      0.92        59

    accuracy                           0.93       120
   macro avg       0.93      0.92      0.92       120
weighted avg       0.93      0.93      0.92       120

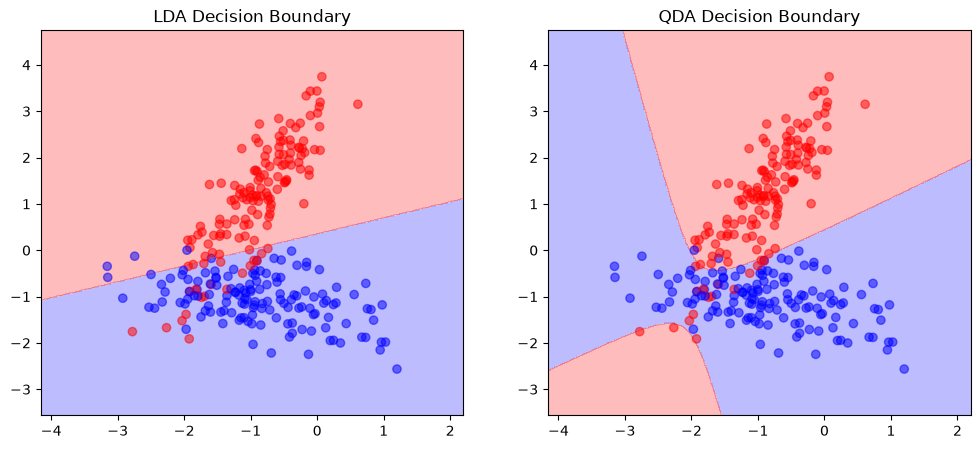

To get a better intuitive understanding about the models, we can further plot the decision boundaries by making systematic predictions across a grid in the feature space and coloring it accordingly. It then becomes visible how the decision boundary is linear for LDA and quadratic for QDA:

import numpy as np

def plot_decision_boundary(model, X, y, ax):
    x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
    y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
    xx, yy = np.meshgrid(np.linspace(x_min, x_max, 500), np.linspace(y_min, y_max, 500))
    Z = model.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)
    ax.contourf(xx, yy, Z, alpha=0.3, cmap='bwr')
    ax.scatter(X[:, 0], X[:, 1], c=y, cmap='bwr', alpha=0.5)

# Plot decision boundaries
fig, ax = plt.subplots(1, 2, figsize=(12, 5))
ax[0].set_title('LDA Decision Boundary')
plot_decision_boundary(lda, X_train, y_train, ax[0])

ax[1].set_title('QDA Decision Boundary')
plot_decision_boundary(qda, X_train, y_train, ax[1])
plt.show()
